NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area

NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area
NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area

Large Image :  NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area

Product Details:
Place of Origin: KOREA
Brand Name: NLT
Certification: ISO9001
Model Number: NL6448BC20-08E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

NL6448BC20-08E 6.5 inch TFT LCD Display Screen 132.48×99.36 mm Active Area

Description
Panel Type: A-Si TFT-LCD Panel Size: 6.5 Inch
Resolution: 640(RGB)×480 (VGA) Display Mode: TN, Normally White, Transmissive
Outline: 178.8×126.8 Mm Touch Panel: Without
High Light:

nec lcd touch screen

,

nec tft lcd

NL6448BC20-08E 6.5 inch Normally White TFT LCD Display Screen 132.48×99.36 mm Active Area



NL6448BC20-08E for Information



Panel Model NL6448BC20-08E
Panel Brand NEC
Descrition a-Si TFT-LCD ,6.5 inch, 640×480
Panel Type a-Si TFT-LCD
Display Mode TN, Normally White, Transmissive
Active Area 132.48×99.36 mm
Outline 178.8×126.8 mm
Surface Antiglare (Haze 16%), Hard coating (2H), Antireflection
Contrast Ratio 250:1 (Typ.)
Display Colors 262K (6-bit) , CIE1931 42%
Response Time 13/36 (Typ.)(Tr/Td)
Viewing Angle 50/50/35/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency 60Hz
Lamp Type 2 pcs CCFL Without Driver
Signal Interface Parallel RGB , 31 pins
Input Voltage 3.3/5.0V (Typ.)(VCC)


Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

FAQ



Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

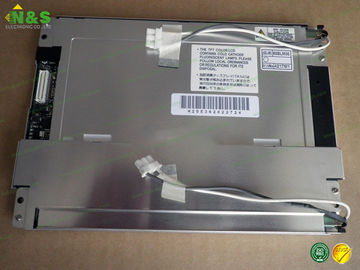

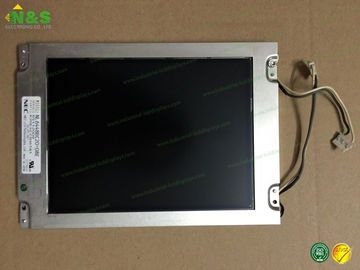

NL6448BC20-08E Picture
