Product Details:
|
| Panel Model: | LQ235D1LW03 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 1920×1080 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 521.28×293.22 Mm | Outline: | 554.8×319×21.4 Mm |
| High Light: | medical lcd panel,medical grade display |
||
LQ235D1LW03 SHARP a-Si TFT-LCD ,23.6 inch, 1920×1080 for 60Hz
| Panel Model | LQ235D1LW03 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,23.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 60 °C |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 1920(RGB)×1080 (FHD) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 93 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0905×0.2715 mm (H×V) |
| Pixel Pitch | 0.2715×0.2715 mm (H×V) |
| Weight | 2.80Kgs |
| Surface | Antiglare (Haze 2%), Hard coating (3H) |
| Active Area | 521.28×293.22 mm (H×V) |
| Bezel Area | 525.26×297.22 mm (H×V) |
| Outline Dimension | 554.8×319 mm (H×V) |
| Outline Depth | 10.3/21.4 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
| Display Mode | UV2A, Normally Black, Transmissive |
|---|---|
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 5000 : 1 (Typ.) (Transmissive) |
| Display Color | 1.07B (8-bit + Hi-FRC) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 4 (Typ.)(G to G) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.296; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| 3D Display | |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 120Hz |
|---|---|
| Reverse Scan | No |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM64P806 | SHARP | 9.4" | 640×480 |
| LM64C389 | SHARP | 10.4" | 640×480 |
| LM17SGFNZ06 | SHARP | 1.7" | 128×141 |
| LM12S481 | SHARP | 12.1" | 800×600 |
| LM12S405 | SHARP | 12.1" | 800×600 |
| LM64032B | SHARP | 9.6" | 640×200 |
| LM24014W | SHARP | 5.2" | 240×64 |
| LM038QC1S101 | SHARP | 3.8" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

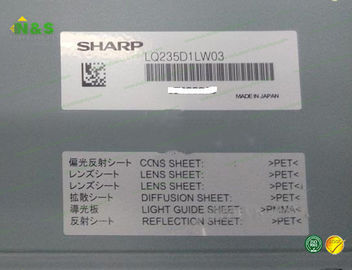

LQ235D1LW03 pictures
