Product Details:
|
| Panel Model: | NL128102BC29-10C | Panel Brand: | NEC |
|---|---|---|---|
| Descrition: | 1280×1024 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 376.32×301.056 Mm | Outline: | 404.2×330×24.1 Mm |
| High Light: | medical lcd panel,medical grade display |
||
NL128102BC29-10C NEC a-Si TFT-LCD ,19.0 inch, 1280×1024 for 60HZ
| Panel Model | NL128102BC29-10C |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,19.0 inch, 1280×1024 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 1280(RGB)×1024 (SXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 86 PPI |
| Aspect Ratio | 5:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.098×0.294 mm (H×V) |
| Pixel Pitch | 0.294×0.294 mm (H×V) |
| Weight | 2.60/2.75Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 376.32×301.056 mm (H×V) |
| Outline Dimension | 404.2×330 mm (H×V) |
| Outline Depth | 22.0/24.1 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Display Mode | UA-SFT, Normally Black, Transmissive |
|---|---|
| Brightness | 290 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.300; Wy:0.315 |
| White Variation | 1.10/1.25 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 25.9W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL12876BC26-25A | NLT | 15.3" | 1280×768 |
| NL8060BC26-28N | NLT | 10.4" | 800×600 |
| NL4864HL11-01A | NLT | 3.5" | 480×640 |
| NL204153AM21-24A | NLT | 21.3" | 2048×1536 |
| NL3224BC35-01 | NLT | 5.5" | 320×240 |
| NL10276BC20-05Y | NLT | 10.4" | 1024×768 |
| NL204153BC21-09 | NLT | 21.3" | 2048×1536 |
| NL128102BC31-02 | NLT | 20.1" | 1280×1024 |
We also have other industrial LCD panels, pls contact to us for the further information

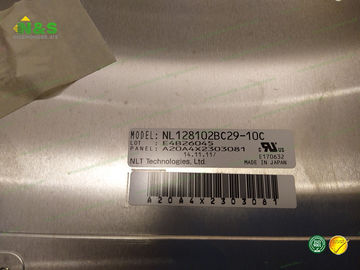

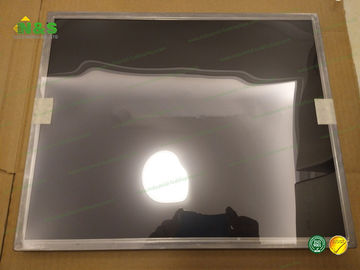

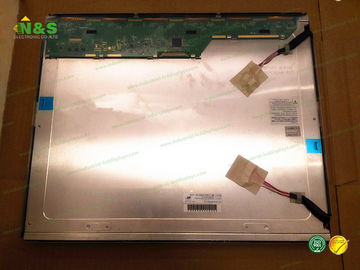

NL128102BC29-10C pictures
