Product Details:
|
| Panel Model: | NL204153AC21-25 | Panel Brand: | NEC |
|---|---|---|---|
| Descritio: | 2048×1536 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 433.152×324.864 Mm | Outline: | 457×350×23 Mm |
| High Light: | medical lcd screen,medical lcd panel |
||
New and original NL204153AC21-25 NEC a-Si TFT-LCD ,21.3 inch, 2048×1536 for Medical Imanging
| Panel Model | NL204153AC21-25 |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,21.3 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 60 °C |
| Storage Temperature | -20 ~ 60 °C |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 120 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0705×0.2115 mm (H×V) |
| Pixel Pitch | 0.2115×0.2115 mm (H×V) |
| Weight | 2.70/2.98Kgs (Typ./Max.) |
| Surface | Antiglare, Hard coating (2H) |
| Active Area | 433.152×324.864 mm (H×V) |
| Bezel Area | 438.2×330.0 mm (H×V) |
| Outline Dimension | 457×350 mm (H×V) |
| Outline Depth | 21.5/23.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Display Mode | UA-SFT, Normally Black, Transmissive |
|---|---|
| Brightness | 800 cd/m² (Typ.) |
| Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 20/20 (Typ.)(Tr/Td) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.299; Wy:0.315 |
| White Variation | 1.25 (Max.)(9 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 58.2W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL6448CC20-04 | NLT | 6.5" | 640×480 |
| NL6448AC33-31D | NLT | 10.4" | 640×480 |
| NL6448AC33-27G | NLT | 10.4" | 640×480 |
| NL6448AC33-25 | NLT | 10.4" | 640×480 |
| NL6448AC33-21 | NLT | 10.4" | 640×480 |
| NL6448AC33-17 | NLT | 10.4" | 640×480 |
| NL6448AC33-09 | NLT | 10.4" | 640×480 |
| NL6448AC33-06 | NLT | 10.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

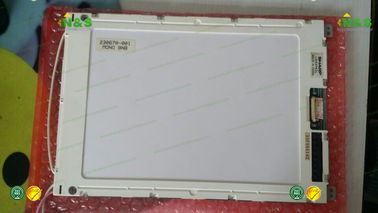

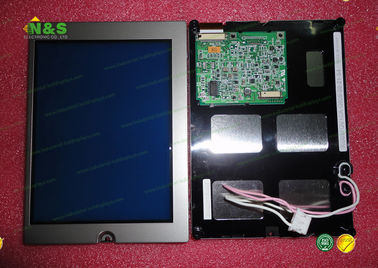

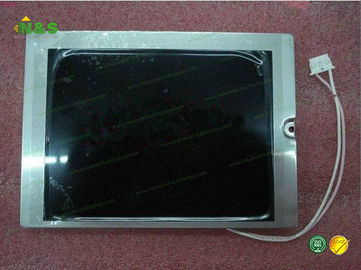

NL204153AC21-25 pictures
