21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density

21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density
21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density 21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density 21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density

Large Image :  21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density

Product Details:
Place of Origin: KOREA
Brand Name: NEC
Certification: ISO9001
Model Number: NL160120AC27-32B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density

Description
Panel Model: NL160120AC27-32B Panel Brand: NEC
Descrition: 1600×1200 Panel Type: A-Si TFT-LCD
Active Area: 432×324 Mm Outline: 457×350×23 Mm
High Light:

medical lcd screen

,

medical grade display

NL160120AC27-32B NEC a-Si TFT-LCD ,21.3 inch, 1600×1200 for 60Hz



NL160120AC27-32B Basic Information

Panel Model NL160120AC27-32B
Panel Brand NEC
Descrition a-Si TFT-LCD ,21.3 inch, 1600×1200
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 60 °C





Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

NL160120AC27-32B Mechanical Features

Dot Resolution 1600(RGB)×1200 (UXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 94 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.090×0.270 mm (H×V)
Pixel Pitch 0.270×0.270 mm (H×V)
Weight 2.70/2.98Kgs (Typ./Max.)
Surface Antiglare, Hard coating (2H)
Active Area 432×324 mm (H×V)
Bezel Area 438.2×330.0 mm (H×V)
Outline Dimension 457×350 mm (H×V)
Outline Depth 21.5/23.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without





Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Competitive price for different brands hard disk.

• Mass stock with the better price.

• Multiple options.

• Warranty service.

• Better team to provide the before-sales, on-sale and after-sale service

• Pls send us message if any hard disk needed.



NL160120AC27-32B Optical Features

Display Mode UA-SFT, Normally Black, Transmissive
Brightness 760 cd/m² (Typ.)
Contrast Ratio 1200 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 20/20 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.299; Wy:0.315
White Variation 1.25 (Max.)(9 points)
Sunlight Readable Y





Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.

NL160120AC27-32B Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 57W (Typ.)





Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
NL6448BC33-29 NLT 10.4" 640×480
NL10276BC20-11 NLT 10.4" 1024×768
NL10276BC28-01 NLT 14.1" 1024×768
NL9654HL06-01J NLT 2.7" 960×540
NL8060BC31-47C NLT 12.1" 800×600
NL8060BC31-18A NLT 12.1" 800×600
NL8060BC31-17-CIS NLT 12.1" 800×600
NL8060BC26-24 NLT 10.4" 800×600



We also have other industrial LCD panels, pls contact to us for the further information

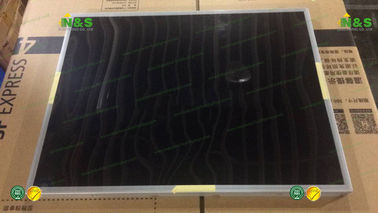

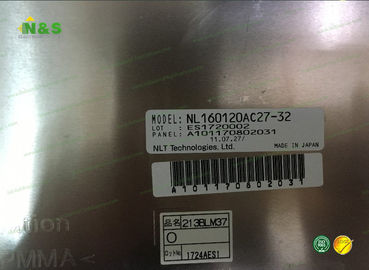

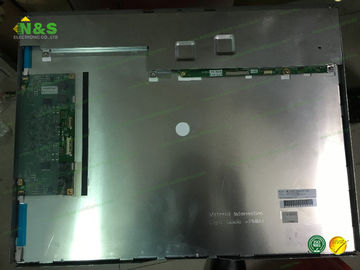

NL160120AC27-32B  pictures



21.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density 021.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density 121.3 Inch 1600×1200 Medical Grade LCD Monitors NL160120AC27-32B 94 PPI Pixel Density 2
