Product Details:
|
| Panel Brand: | Tianma | Panel Model: | TM101JDHP01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.1 Inch |
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | SFT, Normally Black, Transmissive |
| High Light: | black and white lcd display,lcd display white screen |
||
TM101JDHP01 Tianma Industrial Flat Panel Display Panel with 216.96×135.6 mm Active Area
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
| TM240128ABCWVBYD | Tianma | 4.8" | 240×128 |
| TM24064BBCWVBYD | Tianma | 5.2" | 240×64 |
| TM12864G3CIWGNA1-1 | Tianma | 2.4" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
TM101JDHP01 Specification
| Panel Brand : | TIANMA |
| Panel Model : | TM101JDHP01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.1 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | SFT, Normally Black, Transmissive |
| Active Area : | 216.96×135.6 mm |
| Outline : | 229.46×149.1×4.3 mm |
| Surface : | Hard coating |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S11P WLED Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 180g (Typ.) |
| Surface : | Hard coating |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 229.46×149.1 mm (H×V) |
| Outline Depth : | 2.5/4.31 (Typ./Max.) mm |
| Touch Panel : | Without |

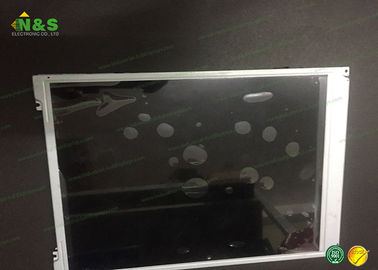

TM101JDHP01 Picture
