Product Details:
|
| Surface: | Antiglare, Hard Coating (3H) | Brightness: | 300 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 65% |
| Lamp Type: | WLED | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 30 Pins |
| Input Voltage: | 5.0V (Typ.) | Panel Brand: | INNOLUX |
| High Light: | tft lcd display,lcd display panel |
||
G156BGE - L01 15.6 inch innolux lcd screen replacement 344.232×193.536 mm Active Area

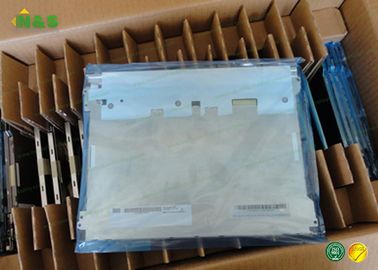

Details Pictures for Innolux LCD Panel G156BGE-L01INNOLUX G156BGE-L01 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | G156BGE-L01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 15.6 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 344.232×193.536 mm |
| Outline : | 363.8×215.92×17.35 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 65% |
| Response Time : | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
INNOLUX G156BGE-L01 Mechanical Features
| Panel Size : | 15.6 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 100 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.084×0.252 mm (H×V) |
| Pixel Pitch : | 0.252×0.252 mm (H×V) |
| Weight : | 1.19/1.25 (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 344.232×193.536 mm (H×V) |
| Bezel Area : | 347.53×196.84 mm (H×V) |
| Outline Dimension : | 363.8×215.92 mm (H×V) |
| Outline Depth : | 16.85±0.5 mm |
| Holes & Brackets : | Side mounting holes; Rear mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We Can Do for You:
1) One-to-one service with efficient& professional support;
2) Protection of your design and all your private information;
3) We could supply hard-to-findLCD screen replacements;
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
| PG055IC-07F | Innolux | 5.5" | 1080×1920 |
| PB050IC-01D | Innolux | 5.0" | 1080×1920 |
| PG050IA-02A | Innolux | 5.0" | 540×960 |
