Product Details:
|
| Panel Model: | LS037V7DD06R Compatible Model | Contrast Ratio: | 100:1 (Typ.)(Transmissive) 5:1 (Typ.)(Reflective) |
|---|---|---|---|
| Display Colors: | 262K (6-bit) | Display Mode: | TN,Normally Black, Transmissive |
| Viewing Angle: | 40/40/40/40 (Typ.)(CR≥10) (L/R/U/D) | Response Time: | 30/50 (Typ.)(Tr/Td) |
| Signal Interface :: | Parallel RGB (1 Ch, 6-bit) , 51 Pins | Viewing Direction :: | 6 O'clock |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||

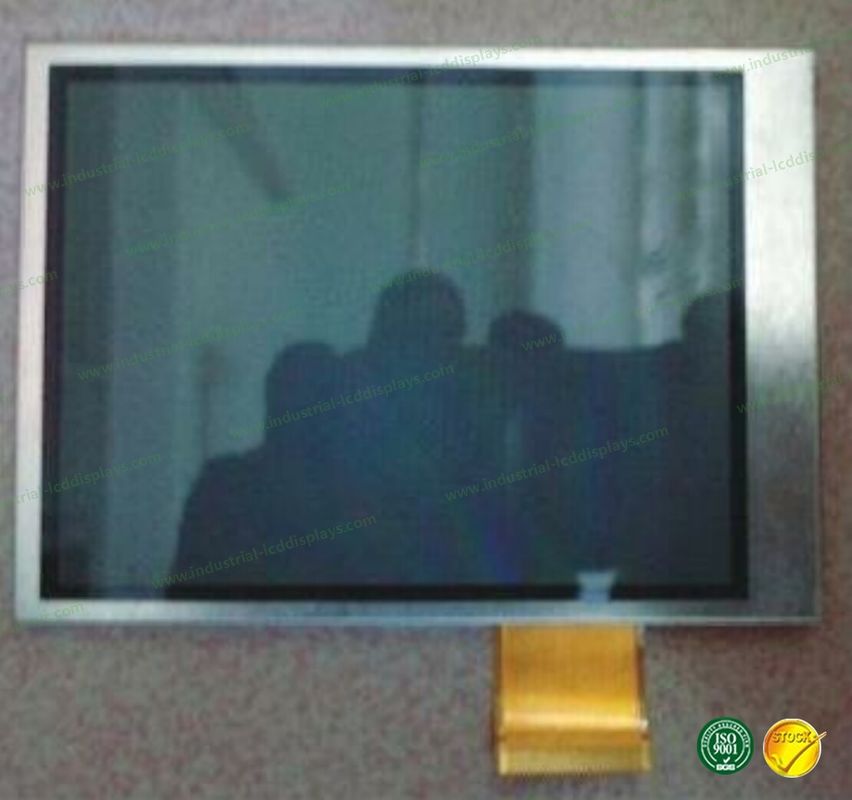

Sunlight Readable 3.7 Sharp LCD Panel LS037V7DD06R CG-Silicon For Car Navigation
Descriptions for SHARP LS037V7DD06R:
1. Panel Brand : SHARP
2. Panel Model : LS037V7DD06R
3. Panel Type : CG-Silicon , Panel
4. Panel Size : 3.7 inch
5. Resolution : 480(RGB)×640 , VGA
6. Display Mode : TN, Normally White, Transflective
7. Active Area : 56.16×74.88 mm
8. Outline : 65×90 mm
9. Surface :
10. Brightness : 100 cd/m² (Typ.)
11. Frequency : 60Hz
12. Lamp Type : WLED Without Driver
13. Signal Interface : Parallel RGB (1 ch, 6-bit) , 51 pins
14. Input Voltage : 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS)
Technical parameters for SHARP LS037V7DD06R:
<
| Display Mode : | TN, Normally White, Transflective |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 5:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.280; Wy:0.300 |
| Reflectance Ratio : | 4.0/6.0% (Min./Typ.) |
| Sunlight Readable : | Sunlight Readable |
Our Product Advantages:
<
| Signal Category : | TTL |
| Signal Class : | Parallel RGB (1 ch, 6-bit) |
| Input Voltage for Panel : | 5.0/3.3/8.0/-4.0/-8.0V (Typ.)(VSHA/VSHD/VDD/VSSD/GVSS) |
| Input Current for Panel : | 5.5/2.3/0.7/0.6/0.1mA (Typ.)(ISHA/ISHD/IDD/ISSD/GISS) |
| Voltage for Display Signals : | 0≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD |
| Interface Type : | FPC |
| Language : | English |
| Version : | LCP-05015A |
| Issue Date : | 38510 |
| Disclaimer : | The above parameters are inputted by electronic engineers according to the datasheet, every effort has been made to reduce errors, but we can not guarantee that the parameter is entirely correct. |
Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.
We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.
